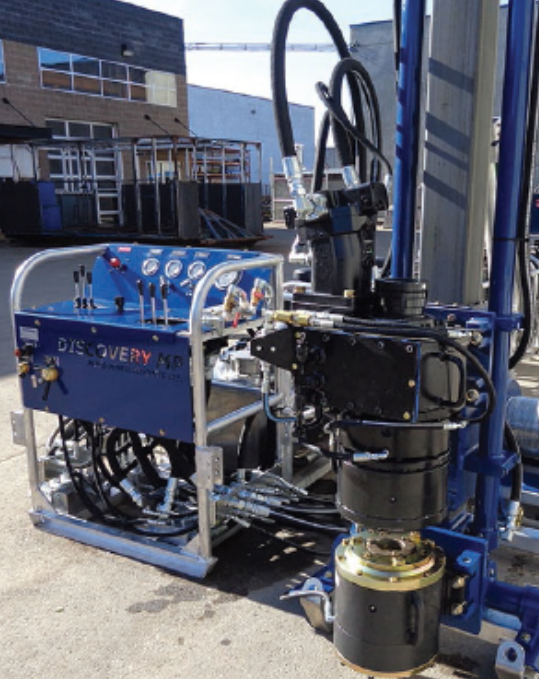

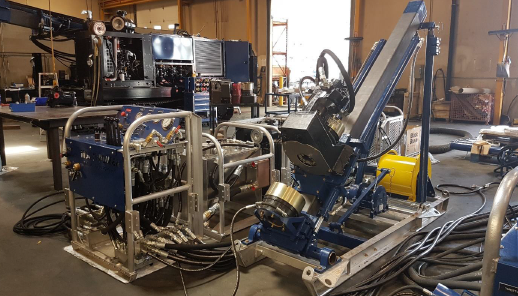

Man Portable Core Drill - Mp1000
Portable and flyable deep drilling unit
Lightweight Module Design
P,H,N Chuck & Clamp
Aluminium Construction
Simple Hydraulic System
Specifications:
Capability
B: 1,603 m
N: 1,285 m
H: 700 m
Engine: Kubota V3300T, 4-cylinder, turbo charged diesel (3 engine per drill unit)
Power: 72 HP @ 3000 rpm
RPM: 0-1200 rpm
Torque: variable 0-1500 ft-lbs
Pullback: 29,000 lbs
Pulldown: 15,020 lbs
Drill angle: 45-90 degree
Hydraulic system: manual direct hydraulic
